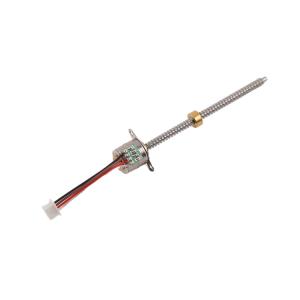

10mm 5V Stepper Motor with M3P1.2mm Screw and Copper Nut
Premium Products
10mm 5V Stepper Motor with M3P1.2mm Screw and Copper Nut
1
2
3
4
5
6
Place of Origin :Jiangsu, China
Brand Name :Vic-tech
Model Number :SM10-56.5L
Certification :RoHS
MOQ :5
Price :$1.99-5
Phase :2, 2
Type :Permanent Magnet
Current :270 mA
Rated Voltage :5V DC
Coil Resistance :18Ω±10%
Step Angle :18
Size :DIA10*L12mm
Lead Screw :M3P1.2
Screw Length :56.5mm
Max Starting Frequency :1500 PPS min. (AT 5.0 V DC)
Max Slewing Frequency :1000 PPS min. (AT 5.0 V DC)
Pull In Torque :5.0 gf-cm min. (AT 500 PPS , 5.0 V DC)
Pull Out Torque :6.0 gf-cm min. (AT 500 PPS , 5.0 V DC)
Insulation Strength :100 V AC FOR ONE SECOND
Insulation Resistance :50 MΩ (DC 500 V)
Contact Now
10BY micro 5v 10mm diameter mini stepper motor PM stepping motor

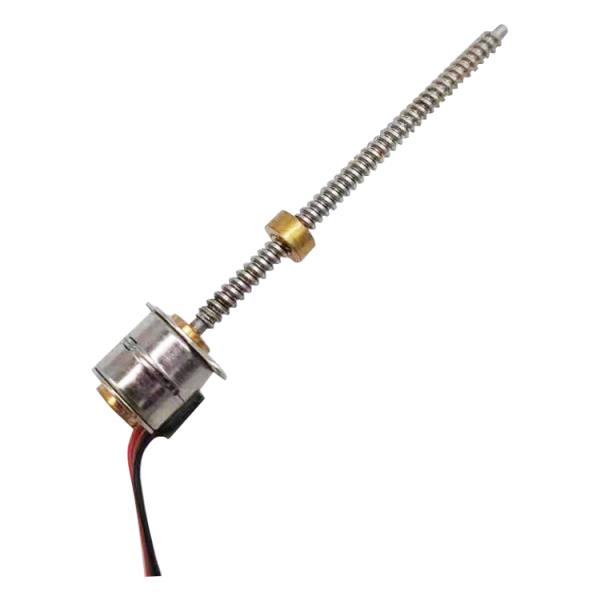

This motor is a 10mm diameter stepper motor with a mounting hole spacing of 14mm. It is a 2-phase bipolar stepper motor with a standard screw pitch of M3P1.2mm and comes with copper nuts. Nuts can also be customized according to customer needs
PRODUCT NAME
10MM STEPPER MOTOR
MODEL
SM10-56
MAX. STARTING FREQUENCY
1500 PPS min. (AT 5.0 V DC)
MAX. SLEWING FREQUENCY
1000 PPS min. (AT 5.0 V DC)
PULL IN TORQUE
5.0 gf-cm min. (AT 500 PPS , 5.0 V DC)
PULL OUT TORQUE
6.0 gf-cm min. (AT 500 PPS , 5.0 V DC)
INSULATION CLASS
CLASS E FOR COILS
INSULATION STRENGTH
100 V AC FOR ONE SECOND
INSULATION RESISTANCE
50 MΩ (DC 500 V)
OPERATING TEMPERATURE RANGE
-0~+55℃
OEM & ODM SERVICE
AVAILABLE

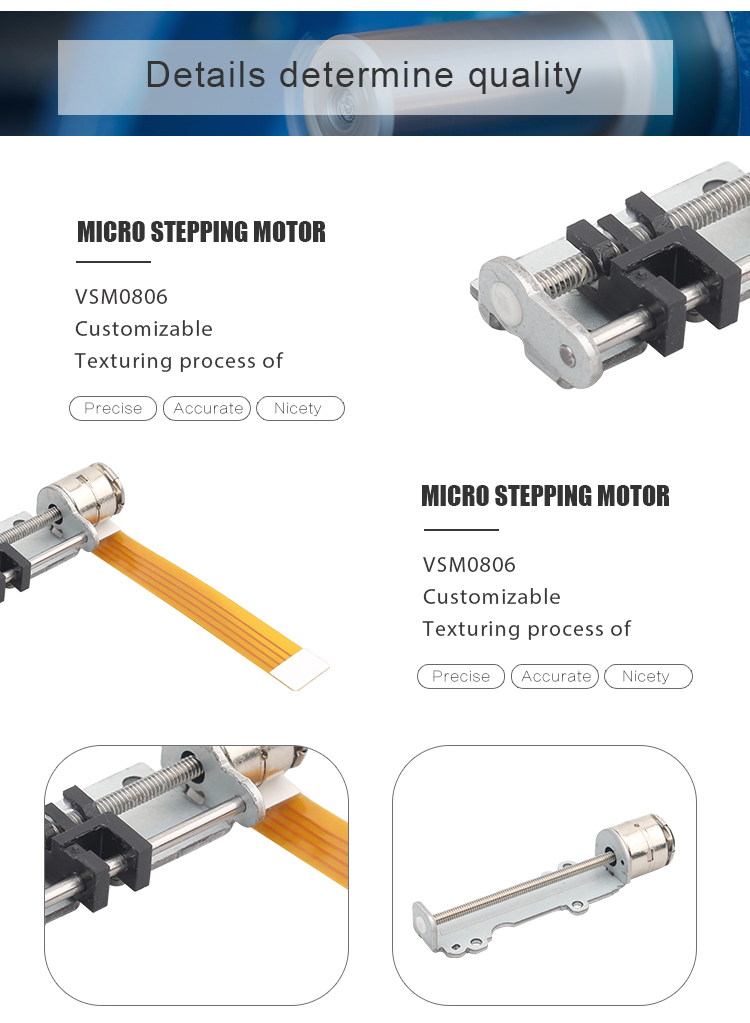

10mm Micro Slider Linear Stepper Motor 5V DC Screw stepper motor
Basic Drawing:
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
